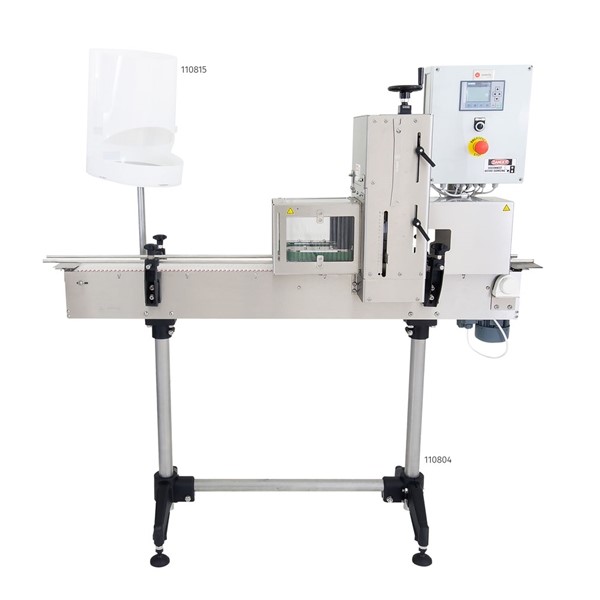

콘베어식 자동캡핑기
제품 특징
- 나사식 및 회전식 뚜껑을 처리할 수 있습니다. 이 기계는 사용하기 매우 쉽고 한 사람이 조작할 수 있습니다.
- 작업자는 손으로 뚜껑을 느슨하게 병에 올려놓고, 기계가 뚜껑 다리를 나사로 고정합니다.
- 토크 압력은 자유롭게 조절할 수 있으며 거의 모든 종류의 뚜껑에 충분히 강력합니다.
- 분류기(110803)를 이 기계에 주문할 수 있으며, 뚜껑이 자동으로 병이나 유리잔에 부착됩니다.
제품 특징
생산량: 1000개/hr
사용가능 병 지름 : Ø40 ~ 110mm
사용가능 뚜껑지름 : Ø42 ~ 90mm
제품크기 : 1750 x 800 x 1750mmH
사용전류 : 668W, 220V, 1Phase
회전토르크 : 0.1 ~ 10Nm
콘트롤러 : PLC
캡공급 : Manual
캡핑 : Automatic
Technical Data
Machine type: Fully automated lidfitter Power supply: 100-240 Vac 50/60Hz
Current consumption: 5.3 A (100 Vac), 2.15 A (240 Vac) Capacity: Up to 1000 lids/hour
Air supply: 6-8 Bar, 50 Litre, 220 Liter/Minute Operation: 4" Siemens touch screen
(can be upgraded to 7")
Dimensions excl. turntables,
lid sorter and filling machine: 1950 x 1000 x 1950 mm (height incl. light tower 2200 mm)
Dimensions incl. turntables,
lid sorter and filling machine: 2080 x 2045 x 2200 mm Conveyor belt height: 900 - 1050 mm
Weight excl. turntables,
lid sorter and filling machine: 300 kg. Weight incl. turntables,
lid sorter and filling machine: 530 kg. Jar size: Min: 040mm - H25mm
Max: 0150mm - H350mm
Lid size: Min: 040mm - H7mm Max: 0120mm - H30mm
제품 사진
